WATER UTILITIES

Predictive maintenance on legacy SCADA for a water utility, without touching the control system

Decades-old SCADA systems run critical pumping and treatment, with no predictive maintenance and incidents handled by hand. Wexa built a read-only retrofit: a gateway that reads tags, detects faults, remembers past incidents in the graph and raises approved work in the service-management tool.

Download this case as PDF Book a demo

sites modelled: treatment works and boosters
fault types detected (bearing wear, fan seizure, radio drop, valve stiction, main burst)
action tiers, from record-only to approval-gated
changes to the legacy HMI or control loop

CLIENT: UK water utility (treatment works and pumping estate)
REGION: UK
WHEN: 2026
ENGAGEMENT: Solution build
WEXA COMPONENTS: Wexa memory layer (graph DB) · edge model · ITSM integration · tiered approvals

01Case 18

The challenge

Legacy PLCs, RTUs and HMIs over Modbus and DNP3; no analytics
Operational data siloed from IT service management
Safety: AI must never sit in the control loop

What Wexa built

Read-only gateway polling tags, running detectors and writing graph memory (sites, assets, tags, readings, alarms, failure modes, incidents, actions)
Edge language model explaining detections using recalled past incidents and remaining useful life
Incidents raised in the ITSM tool on the right configuration item; approval flows return only allow-listed actions
Action tiers: record; auto-notify; approval in the ITSM tool; advisory only. PLC-enforced bands are the final authority

02Case 18

How it runs on Wexa

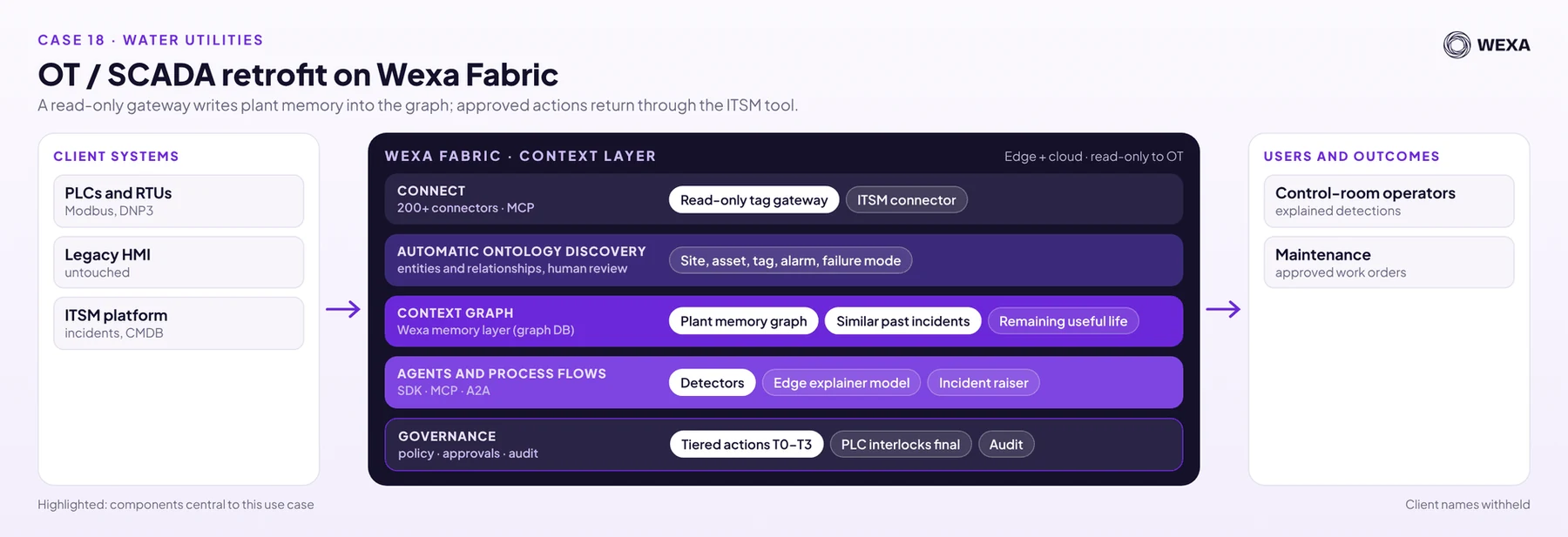

FigureHow this use case runs on Wexa: client systems connected, ontology discovered, context graph in the Wexa memory layer, agents and process flows, and governance. Highlighted components are central to this use case.

03Case 18

Retrofit wiring

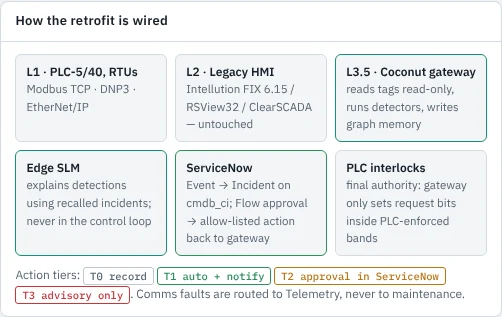

FigureHow the retrofit is wired: PLCs and legacy HMI untouched; the gateway writes graph memory; the edge model explains; approved actions return through the ITSM tool (product screen).

04Case 18

Results

Measure	Before / without Wexa	With Wexa
Unplanned pump and asset failures per year	12 failures	4 failures
Annual cost of the process	$1.8M	$600K
Time to implement the AI solution	6 months	8 weeks
AI build cost (one-time)	$480K	$59K
AI operating cost per year (models, infrastructure, upkeep, platform)	$312K	$166K
Total AI cost in year 1	$792K	$225K
